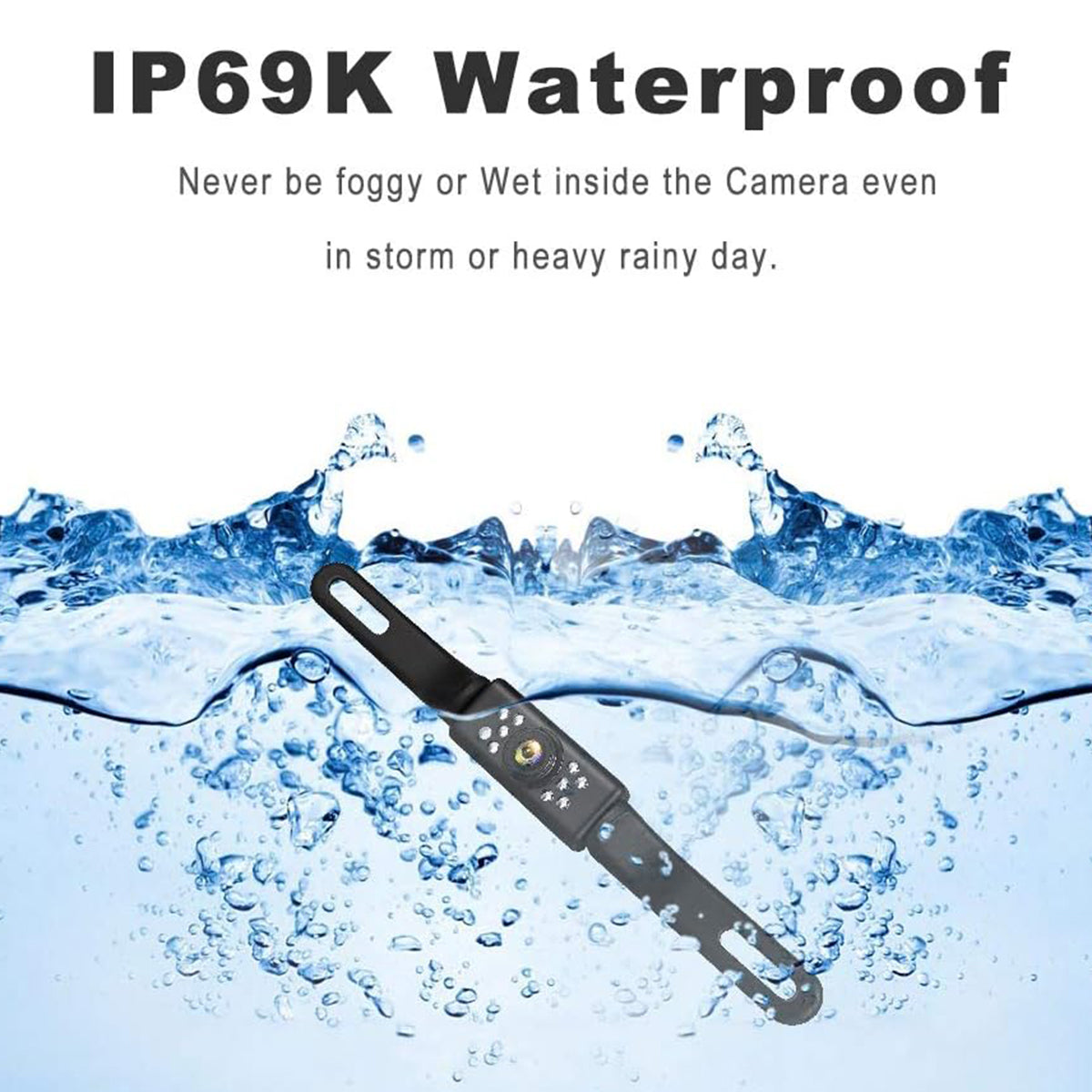

Product Details
- Mount the camera on the panel and route the wire to inside (DO NOT pinch the wire/cable when route the wire, pinched wire will damage the camera, drill a hole to allow the wire go through if needed).
- Apply electrical tape for the joint of the red power wires and RCA wires, and use zip ties to fasten the wire on your vehicle.
- If your head unit with a reverse triggering wire, normally it is a pink color wire, please find it, and connect it with the extension wire's triggering wire wel (small short red wire next to the RCA/AV connector).
- If the image on the screen is blurry, flickering/flash or has horizontal or vertical strip, please check all your power and video connections. Possibly use a different ground point(iron part) and wrap power and video plugs with electrical tape to insulate from interference. If it still with blurry, flickering/flash or has horizontal or vertical strip, please order a 12V DC power adapter filter rectifier to solve it, especially need for Dodge VW AUDI BMW Mercedes Benz brands vehicle.
- Before you routing, if there is no image on the screen, other than check the camera, please check display setting as well. You can use other device with RCA connector, such as TV to check if the camera works.
Infrared night vision is better than ordinary led night vision, infrared night vision distance is farther and clearer, but the night display will show black and white color, which is normal.
CMOS
The cmos chip provides a stable, high-definition color view.
Clear night vision
Day or night, the JPP camera shows a bright and clear view when compared to the human eye.
Application for Most Vehicles
This backup camera compatible for most of DC 12 vehicle type, such as Cars/SUVs/Pickups/Minivan/Small Truck.
How to Connect (This product does not include a monitor)
- Connect (1) to the positive pole of the power supply of the reverse lights.
- Connect (2) to the negative pole of the power supply of the reverse lights (Ground).
- Connect (3) and (1) together.
- Plug (4) into the input interface of the display screen.
- Connect (5) and (6) together.
Installation Steps:
1. Find a flat surface(parallel to ground) for mounting camera, then secure the nut and bolt in place.
2. Connect the power cable to reversing light power supply.
3. Connect the 26ft extension wire of backup camera to the head unit/other monitors of your car.
4. Start the vehicle and gear on reverse to test the camera.
5. Re-install the head unit/other monitors.
NOTE:
Please test the backup camera before routing video cable from back to front.
If your head unit doesn't have reversing trigger wire, then no need to use the trigger wires on the video cable.
